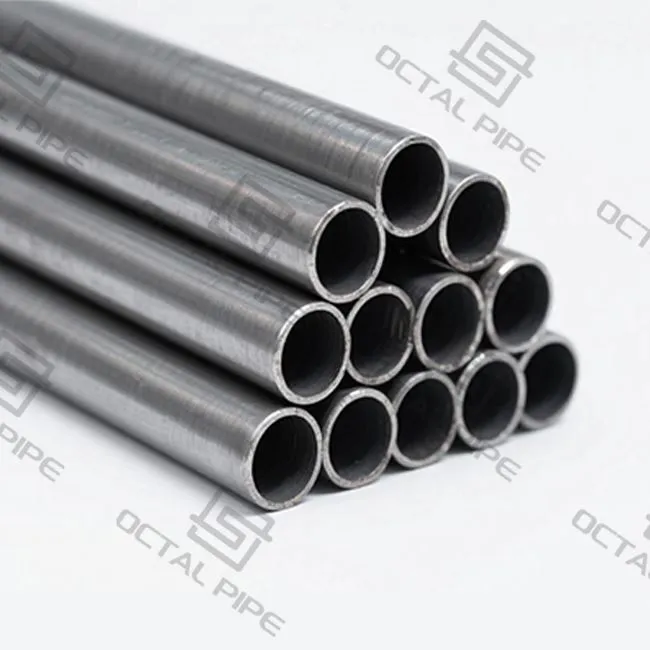

Umbhobho we-API 5L ongenamthungo

I-API 5L yeMibhobho yentsimbi engenamthungo{1}}Ubuchwephesha bokwenza imibhobho ekwinqanaba eliphezulu

Umbhobho we-Octal uvelisa izisombululo ezibanzi ze-API 5L zoMbhobho weMibhobho, oquka zombini imibhobho yentsimbi engenamthungo nedityanisiweyo eyenzelwe i-petroleum kunye neenkqubo zokuthutha igesi yendalo. Amandla ethu emveliso agubungela amabanga ukusuka kwi-API 5L Gr B ukuya kwi-X80, efumaneka kuwo omabini amanqanaba e-PSL1 kunye ne-PSL2. Le mibhobho yenzelwe ukuba ifune unxweme/unxweme kunye nemekobume yenkonzo emuncu (imeko zokonakala kwe-H2S kunye nokuthotyelwa kwe-NACE).
I-API 5L Line Pipe isebenzela amashishini e-oyile negesi anezisombululo zemibhobho eyomeleleyo ephuhliselwe iimeko ezahlukeneyo zokusebenza. Ukwakhiwa kwensimbi yekhabhoni kuhambelana neemfuno ze-API SPEC 5L, ukuqinisekisa ukusebenza okuthembekileyo kwiimeko zokushisa ezigqithiseleyo, iindawo ezinobungozi, kunye nezicelo zenkonzo ezimuncu eziqukethe i-H2S.

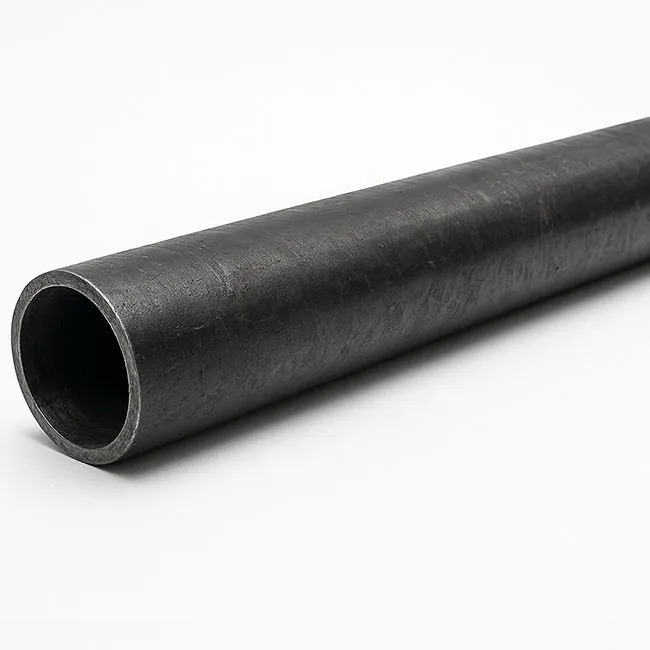

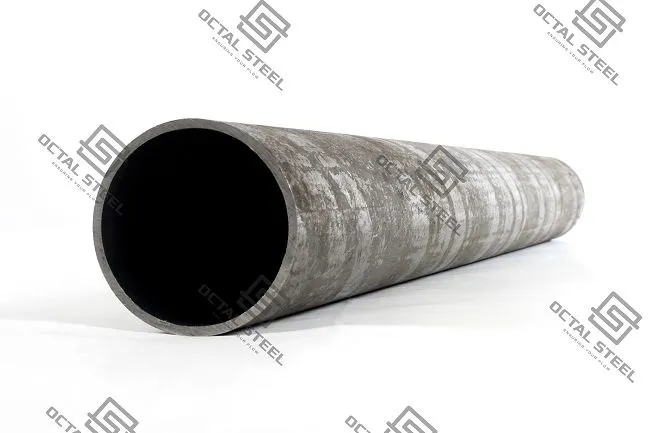

Umthungo Steel Line Pipe
Yenziwe ngeenkqubo ezishushu-eziqengqelekayo ezingenamthungo kunye nezibandayo ezizotyiweyo (eziqengqelekayo), ezifumaneka ngedayamitha ukuya kwi-intshizi ezingama-40. Ulwakhiwo olungenamthungo lususa ubuthathaka bomthungo we-weld, lubonelela ngentembeko yolwakhiwo oluphezulu kusetyenziso loxinzelelo oluphezulu{3}}.

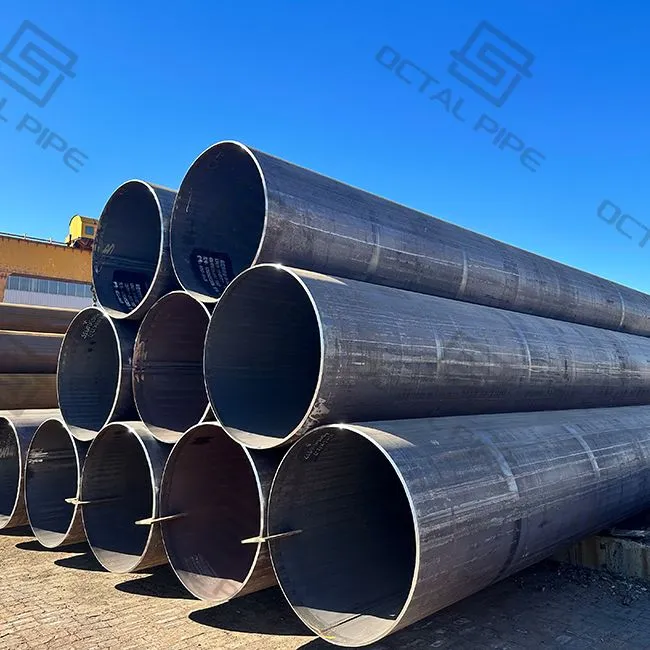

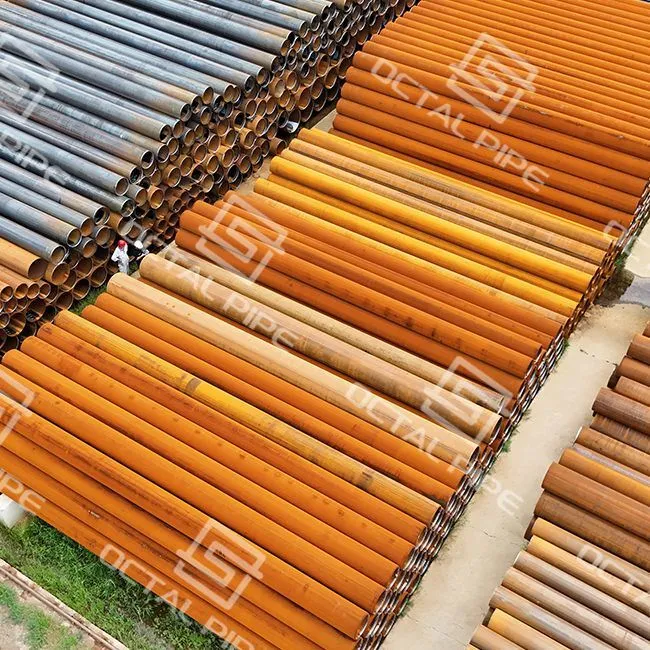

Welded Steel Line Pipe
Iveliswe kusetyenziswa ubugcisa be-welding obuphambili obuquka i-ERW (i-Electric Resistance Welding), i-LSAW (i-Longitudinally Submerged Arc Welding), kunye ne-SSAW (i-Spirally Submerged Arc Welding) iindlela, ezinikezela ngeendleko -izisombululo ezisebenzayo kwizicelo zoxinzelelo oluqhelekileyo.
Izinto zokuhlelwa kweBanga
Iklasi esemgangathweni:I-API 5L Gr.B PSL1, PSL2, Ukwahluka kweNkonzo yeSourAmandla aPhakathi:X42, X46, X52 amabakalaPhakathi{7}}Ukusebenza okuphezulu:Iinkcukacha zeX56
Amandla aphezulu:API 5L X60, X65 PSL1/PSL2 LSAW umbhobho womgcaPremium High Performance: API 5L X70, X80 amabanga
PSL2 Izibizo zesimamva:

• N: Iqhelekile okanye iqhelekile yaqengqwa
• Umbuzo: Wothukile kwaye unomsindo
• M: Thermomechanical rolled/formed
• S: Usetyenziso lwenkonzo emuncu (NS, QS, MS indibaniselwano)
• R: Njenge{0}}imeko esongiweyo

IiNkcazelo zemibhobho yomgca ongenamthungo

• Ukuthobela uMgangatho: API SPEC 5L (Ushicilelo lwangoku)
• AmaBanga akhoyo: B, X42, X52, X56, X60, X65, X70 kuquka S-umahluko wenkonzo emuncu isimamva
• Uluhlu lweDiameter yaNgaphandle: 1/2" ukuya kuma-40" (12.7mm ukuya kwi-1016mm)
• Ukutyeba kweendonga: IShedyuli ye-10 ukuya kwiShedyuli ye-160
• Phelisa ulungelelwaniso: Iziphelo ezibeveled, ziphela ezingenanto
• Ubude obuMgangatho: 6 yeemitha (20 FT), 12 yeemitha (40 FT), okanye ubude obulungiselelweyo
• Unyango loMphezulu: Ukugqitywa kwendalo, iVarnished, ipeyinti emnyama, i-FBE, i-3PE yokwambathisa, iinketho zokuvala kunye neLining
• Izinketho ze-CRA: Intsimbi yeCarbon ene-cladding okanye i-lined alloy steel materials

IiNkcazo zoMbhobho we-Welded Line

• Iindlela ze-Welding: i-ERW, i-LSAW, i-SSAW iteknoloji
• Umthamo weDayamitha: 1/2" ukuya kuma-60" (12.7mm ukuya kwi-1524mm)
• Uluhlu lokutyeba kweendonga: IShedyuli ye-10 ukuya kwiShedyuli ye-160
• Iindidi zokuphela: Iziphelo zeBeveled, iziphelo ezicacileyo
• Iinketho zobude: 6m, 12m, okanye umthengi{2}}ubude obuchaziweyo
• Izicelo zoMphezulu: Indalo, iVarnished, ipeyinti emnyama, i-3PE, i-FBE yokwambathisa

IiMfuno zokuBunjwa kweMichiza

Umbhobho wemichiza odityanisiweyo ugcina iiparitha zolawulo ezingqongqo xa kuthelekiswa nokwahluka okungenamthungo, ukuqinisekisa iipropati eziphathekayo ezihambelanayo kuyo yonke inkqubo yokuvelisa. Ikhabhoni, i-manganese, i-phosphorus, kunye nomxholo wesulfure zilawulwa ngokuchanekileyo ukuhlangabezana neenkcukacha ze-API 5L.

IiPropati zokuSebenza koomatshini

Amandla esivuno kunye neenkcukacha zokuqina kokuqina zihlala zingaguquguquki phakathi kweeyantlukwano ezingenamthungo kunye ne-welded ngaphakathi kwamabanga alinganayo. Iimpawu zomatshini ziqinisekiswa ngeeprothokholi zokuvavanya ngokubanzi ukuqinisekisa ukuthotyelwa kweemfuno ze-API 5L.

Unyamezelo lweDayimitha yaNgaphandle:
a. Ubukhulu obungaphantsi kwe-60.3mm (2⅜"): Ukunyamezelana komzimba wombhobho ± 0.5mm, Ukuphela kombhobho ±0.5mm; Ukunyamezela ukungqukuva 0.9mm (umzimba), 0.6mm (iziphelo) b. ± 1.6mm Ukujikeleza Ngaphantsi okanye ilingana no-0.015D (umzimba), Ngaphantsi okanye ilingana no-0.01D (iziphelo)
Ukunyamezela ukutyeba kweendonga:

• < 4mm: +0.6mm, -0.5mm tolerance
• 4mm ukuya 10mm: +0.150t, -0.125t ukunyamezelana
• 10mm ukuya ku-25mm: ± 0.125t ukunyamezela
• Enkulu kuno okanye ilingana no 25mm: +3.7 mm okanye +0.1 t (nayiphi na enkulu), -3.0mm okanye -0.1t (nokuba yeyiphi enkulu)

IiMfuno zokuThwala:

• Ubude obuninzi bokutenxa: 0.15% yobude obupheleleyo
• Ukutenxa kwisiphelo sombhobho: Ngaphantsi okanye ilingana no-0.3mm/imitha
• Ukunyamezela ubude obuqhelekileyo: ±200mm (ngokubanzi), ±25.4mm (usetyenziso olukhethekileyo)

Iindlela zokuVelisa uMbhobho ongenamthungo
Ishushu-Inkqubo eQingiweyo engenamthungo:

Inkqubo Ebandayo Ezotywayo/Eqengqelekayo:Ukulungiselela uMbhobho kaMama → Ukuhlolwa → Ukuqhotyoshela → Ukuphelisa Unyango → Ukuchola → Ukugaya → Phosphorization → Ukuzoba Okubandayo/Ukuqengqeleka → Ukucoca & Ukwehlisa Ubushushu → Unyango Lobushushu → Ukulungisa → Uvavanyo lweHydrostatic → Ukumakisha nokupeyinta → Ukugcina

Iinkqubo zokuVelisa uMbhobho odityanisiweyo
I-ERW Manufacturing (Ngaphantsi okanye ilingana nama-24" ubukhulu):

LSAW/JCOE Manufacturing (20"-40" ubukhulu):

I-SSAW Manufacturing (ukuya kuma-60" ububanzi):
Ukukhulula → Ukuqondisa → Ukulungelelanisa iKhoyili → Ukulungelelanisa → Ukugaya uMda →Hambisa → Ngaphambi-ukugoba → Ukubumba → Ukugalela ukuwelda → Ukusika iPlasma → Ukuwelda kweTab → Ngaphakathi kunye ne-Externa Submerged Arc Welding →Ukususwa kweTab→ I-Weld grinding}Uvavanyo lwe-UT → I-Automatic → Ukwandiswa→UVavanyo lweHydrostatic →Isiphelo sokujongana/Bevelling →Base Metal & Weld Ultrasonic Testing→X-ray & noVavanyo lweFilimu → uHlolo lokuGqibela → Ubunzima kunye neDimension→Ukwambathisa→Ukumakisha

Umgangatho womphezulu:Imibhobho ye-ERW ibonisa ukugqitywa komphezulu ophezulu xa kuthelekiswa nokwahluka kwe-SAW ngenxa yenkqubo ye-welding egudileyo kunye nokunciphisa ukuqinisa i-weld.
Iimpawu zesiphene:Iziphene ze-ERW ziqhelekile kwaye zibonakala ngokulula ngokuhlolwa kwe-ultrasonic, ngelixa imibhobho ye-SAW inokubonisa iziphene ze-volumetric ukusuka kwidiphozithi ye-flux.
Uxinzelelo olushiyekileyo:Ukuveliswa kwe-ERW kukhokelela kuxinzelelo olusezantsi lwentsalela ngokulawulwa kokuguqulwa kunye neenkqubo zokulinganisa.
Ukuqina:Imibhobho ye-ERW ibonelela ngokulungiseka okongeziweyo - iziphene zokuwelda zinokuphinda zilungiswe, ngelixa ulungiso lwe-SAW lunokwazisa ubungozi bokuqhekeka okanye ukuhlwa.

IziNzuzo zeMibhobho engenamthungo:

• Uluhlu olubanzi lweesayizi eziqhelekileyo
• Ubungakanani obuncinci bokuguquguquka kwimilinganiselo emininzi
• Ubunakho ubude obulungiselelweyo
• I-NACE MR 0175 imathiriyeli ehambelanayo ekhoyo
• Ukuhanjiswa kweshedyuli ngokukhawuleza
• Ubunakho obukhulu bedayamitha ngokwandisa okushushu (ukuya kuma-40")
• Gqibezela ukulandeleka kwezinto kunye nokuqinisekiswa komgangatho

IiNzuzo zoMbhobho oDidiweyo:

• Ixabiso-izisombululo zedayamitha esebenzayo
• Iinketho ezininzi zetekhnoloji ye-welding
• Ubungakanani obandisiweyo boluhlu lwezakhono
• Ukuchaneka komgangatho ohambelanayo
• Ukucwangcisa imveliso esebenzayo

Usetyenziso Olungundoqo:

• Iinkqubo zemibhobho yokuhanjiswa kwePetroleum
• Uthungelwano lokuhambisa igesi yendalo
• Iinkqubo zokuqokelela intsimi yeoli
• Imibhobho yenkqubo yokucoca
• Uqhagamshelo lweqonga elingaselunxwemeni
• Isiseko sothutho lwemibhobho

Iimpawu ze-API 5L zoMbhobho weMibhobho ziqinisekisa ukusebenza okuthembekileyo kwiinkqubo zothutho lwemibhobho kuwo wonke amashishini e-oyile kunye negesi, ukuhlangabezana nemigangatho yamazwe ngamazwe zombini i-PSL1 kunye ne-PSL2 amanqanaba okucaciswa kwemveliso.

Zonke iimveliso zivavanywa ngokubanzi kubandakanya:

• Uhlalutyo lokwakheka kweekhemikhali
• Ukuqinisekiswa kwepropathi yoomatshini
• Uvavanyo -olungatshabalalisi (NDT)
• Uvavanyo loxinzelelo lwe-Hydrostatic
• Ukuhlolwa kwe-ultrasonic
• X-uviwo lwereyi (imibhobho edityanisiweyo)
• Ukuqinisekiswa komda

IiNgcaciso zobuGcisa zixhomekeke ekuqinisekisweni ngexesha lomyalelo. Qhagamshelana neqela lethu lobunjineli ngeemfuno ezithile zesicelo kunye namaxwebhu obugcisa aneenkcukacha.

Iziqinisekiso



Isatifikethi seCE

Isatifikethi se-ISO 9001

Isatifikethi se-API Q1

Isatifikethi se-ABS

Isatifikethi se-AP-5L

Isatifikethi se-API-5CT
