I-Flange

Umboneleli wakho weFlange yobuNgcali

I-Octal Pipe ngumboneleli oqeqeshiweyo kunye nodibeneyo weemveliso ze-oilfield kunye nezisombululo zentsimbi ezisekelwe e-China. Ngamava abanzi ekuboneleleni, ekusasazeni, nakwimveliso, sisebenza ngokukhethekileyo ekuboneleleni ngoluhlu olubanzi lwezixhobo zentsimbi kwi-oyile negesi, amandla kunye namacandelo oshishino.

Kutheni Khetha Thina

UQinisekiso loMgangatho oPhezulu

Imibhobho yethu yentsimbi ivavanywa ngokuqatha kwaye ithobela imigangatho yamazwe ngamazwe, iqinisekisa ukuqina okungenakuthelekiswa nanto, ukuxhathisa ukubola, kunye nokusebenza kwiimeko ezinzima.

Izatifikethi

Yonke imveliso ixhaswa kukulandeleka okupheleleyo kwemathiriyeli, izatifikethi zokusila, kunye nokuthotyelwa kwemigangatho yamazwe ngamazwe efana ne-API, ASTM, ASME, EN, kunye ne-ISO.

Amaxabiso oKhuphiswano

Sihambisa imibhobho yentsimbi yomgangatho we-premium- ngeendleko ezifanelekileyo, siphucula ixabiso ngokwenziwa ngokufanelekileyo kunye nolawulo lwekhonkco lonikezelo ngaphandle kokuthomalalisa umgangatho.

Ukuhanjiswa okukhawulezayo nokuthembekileyo

Ukusebenzisa uthutho lolwandle olusebenzayo kunye nothungelwano lwehlabathi, siqinisekisa ukuthunyelwa kolwandle ngexesha elifanelekileyo kwimibhobho yentsimbi, ukunciphisa ukulibaziseka kunye nokugcina imisebenzi yakho yoshishino kwishedyuli.

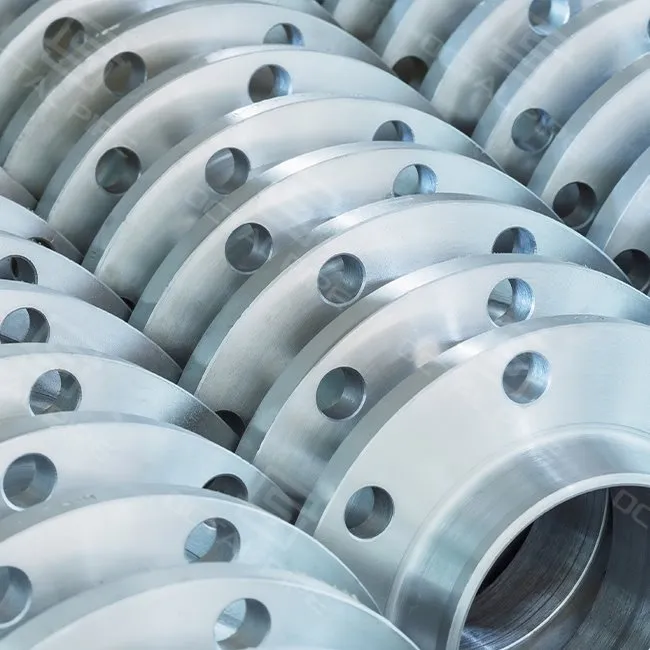

Weld Neck Flange

Imigangatho	ASME B16.5 (½″–24″), ASME B16.47 (26″–60″)
Amanqaku oxinzelelo	Iklasi 150 - 2500
Ubungakanani Uluhlu	NPS ½″ - 60″
Iintlobo	I-Standard, i-Long Weld Neck, Ukunciphisa i-WN, i-RF, i-RTJ, i-Flat Face
Izinto eziphathekayo	Intsimbi yeCarbon (A105, A350 LF2), iAlloy Steel (F11, F22, F91), iStainless Steel (304/304L, 316/316L), iDuplex/Super Duplex

ImiGangatho yoYilo

ASME B16.5 (NPS ½" – 24")

ASME B16.47 Series A & B (NPS 26" – 60")

MSS SP-44, API 605 (imigangatho ehambelanayo)

Izinto eziphathekayo

Intsimbi yeCarbon	I-ASTM A105, A350 LF2, A694 F52-F70
Intsimbi yentsimbi	I-ASTM A182 F11, F22, F91
Stainless Steel Weld Neck Flange	I-ASTM A182 F304/304L, F316/316L, F321, F347
Duplex & Super Duplex	I-ASTM A182 F51, F53, F55
Amanqaku oxinzelelo	Iklasi 150 - 2500

Izinto ezilungileyo eziphambili zeWeld Neck Flanges

Ukusasazwa koxinzelelo oluPhezulu

I-hub ye-tapered inikezela ngelona nqanaba liphezulu lamandla, okwenza kube yinto efanelekileyo kwiimeko zokusebenza ezinzima.

Ukunyangwa kokuFatigue okwandisiweyo

Umdibaniso we-butt{0}weld inika ukuxhathisa okugqwesileyo kungcangcazelo kunye noxinzelelo lokutshintshatshintsha.

Ukutywinwa okuthembekileyo

Uyilo lunciphisa isiphithiphithi kunye nokhukuliseko olusentanyeni, luqinisekisa ukuvuza{0} kwetywina lobungqina.

Weld Neck Flange Imilinganiselo

Ubungakanani obahlukeneyo beClass 150 ASME B16.5 weld neck flanges ziyafumaneka, ukusuka kwi-1/2″ ukuya kwi-24″. Ubungakanani obunye bunobukhulu obahlukileyo ngaphandle nangaphakathi, ubukhulu bobuso obuphakanyisiweyo, kunye nemingxunya emininzi yeebholiti. Obona bukhulu buncinci bunobubanzi obungaphandle be-3.50 ″ kunye nemingxuma emine yebholiti, ngelixa inkulu inobubanzi obungaphandle be-32.00 ″ kunye nobukhulu obunyusiweyo be-5.69 ″.

Iindidi ezahlukeneyo zeSocket Weld Flanges (Ngokusekwe kuHlobo loBuso)

Iiflange ze-socket weld ziyafumaneka kwiintlobo ezahlukeneyo zobuso, nganye inikezela ngeempawu ezizodwa kunye nezicelo ngokuxhomekeke kwiimfuno zenkqubo. Nazi iintlobo ezahlukeneyo:

Ubuso obuphakanyisiweyo (RF)

Olu lolona hlobo luqhelekileyo lobuso olusetyenziswa kwii-socket weld flanges. Uyilo lobuso obuphakanyisiweyo lunika indawo enkulu yendawo ye-gasket, iphucula ukutywinwa kwayo. Ifanelekile kusetyenziso oluphezulu{2}}loxinzelelo apho isitywina esiluqilima siyimfuneko ukunqanda ukuvuza. Ubuso obuphakanyisiweyo busebenza ngokukodwa ekusasazeni umthwalo we-gasket ngokulinganayo, ukuqinisekisa ukusabalalisa uxinzelelo olugqwesileyo kwi-flange.

Ubuso obucaba (FF)

I-Flat face socket weld flanges isetyenziswa xa i-mating flange okanye uqhagamshelwano lusicaba. Olu didi lobuso luqhele ukusetyenziswa kuxinzelelo oluphantsi{1} lwezicelo apho umngcipheko wokugoba okanye ukujika uncitshisiwe. Iiflange zobuso obucaba zihlala zisetyenziswa kwiimeko apho imathiriyeli yeflange inobunkunkqele okanye inovakalelo kuxinzelelo lokugoba, njengakwinkqubo yentsimbi ephosweyo.

Isidibaniso soMsesane (RTJ)

I-RTJ socket weld flanges ziyilelwe-uxinzelelo oluphezulu kunye{1}}nobushushu obuphezulu bezicelo. Ubuso be-RTJ bubonisa igroove ehlala intsimbi yentsimbi, inikezela ngentsimbi-ukuya{4}}itywina yentsimbi esebenza kakhulu ekuthinteleni ukuvuza phantsi kweemeko ezinzima. Olu hlobo lobuso lusetyenziswa ngokuqhelekileyo kwishishini leoli kunye negesi, apho ukuthembeka kunye nokutywinwa kwengqibelelo kubaluleke kakhulu.

Weld Neck Flange Imilinganiselo

I-1/2 ″ ye-NPS iflange inobubanzi obungaphandle be-3.50 ″ eneebholthole ezine, i-diameter yangaphakathi ye-0.62 ″, kunye nobukhulu bobuso obuphakanyisiweyo be-1.88″.

Kwi-3/4 ″ ye-NPS flanges, i-diameter yangaphakathi yi-0.82 ″ ngelixa i-diameter yangaphandle yi-3.88 ″ enobukhulu obunyusiweyo be-2.06 ″ kunye nemingxuma emine yeebholiti.

I-1″ ye-NPS weld neck flange inobubanzi obungaphandle be-4.25 ″, i-diameter yangaphakathi ye-1.05 ″, nobukhulu bobuso obuphakanyisiweyo be-2.19 ″, kunye nenani eliqhelekileyo le-boltholesis yesine.

I-2 ″ ye-NPS weld neck flange inobubanzi obungaphakathi be-2.07 ″ kunye nedayamitha yangaphandle ye-6.00 ″ enobukhulu obunyusiweyo be-2.50 ″.

I-5 ″ iflenge ye-NPS inobubanzi obungaphakathi obuyi-5.05 ″ kunye nedayamitha engaphandle ye-10.00 ″, nobuso obunyusiweyo bunobukhulu be-3.50″.

I-6 ″ iflenge ye-NPS inobubanzi bangaphakathi be-6.065 ″ kunye nedayamitha yangaphandle ye-11.00 ″ enobunzima bobuso obuyi-3.50 ″.

Kwi-10 ″ ye-NPS flanges, i-diameter yangaphakathi yi-10.02," kwaye i-diameter yangaphandle yi-16", kunye nobuso obuphakanyisiweyo bunobunzima be-4.00".

I-20 ″ iflenge ye-NPS inobubanzi obungaphakathi be-19.25 ″ kunye nedayamitha yangaphandle ye-27.50 ″ enobunzima bobuso obuyi-5.69 ″.

Okokugqibela, i-24 ″ ye-NPS weld neck flange inobubanzi obungaphakathi obuyi-23.25 ″ kunye nedayamitha yangaphandle ye-32.00 ″.

Inkqubo yeMveliso

1.Ifojiwe yasimahla okanye imodyuli ifojiwe
2.Rough machining inkqubo, ukususa umphezulu oxidized ngethwathwa abamnyama.
3.100% Uvavanyo lweUltrasonic ASTMA388
4.Unyango olushushu ngokwesicelo, luqhelekile, lucinyiwe, lunomsindo....
5.Uvavanyo lobunzima
6.Ukugqiba inkqubo kwi-dimensional state efunwa ngumzobo.
7.100% Uvavanyo lweMagnetic ASTM E709 kunye ne-100% yovavanyo lomda
8.Ipeyinti okanye ioli ekhusela i-TECTYL 506 okanye efanayo
9.Ukupakisha ngeebhokisi

Imbeko yeNkampani

FAQ

Umbuzo: Ngaba uyinkampani yokurhweba okanye umenzi?

A: Singumzi-mveliso onamava angaphezu kwama-15 eminyaka.

Umbuzo: Lingakanani ixesha lokuhambisa kwakho?

A: Ngokubanzi, ziintsuku eziyi-15-30. Ekubeni sinikezela ngeenkonzo ezenziwe ngokwezifiso, ixesha lokuhambisa liya kuqinisekiswa kunye nomthengi xa ubeka umyalelo.

Umbuzo: Ngaba uyabonelela ngeesampuli? Isimahla okanye yongeziweyo?

A: Ewe, sibonelela ngeesampuli. Intlawulo yesampulu ixhomekeke kwimeko yesampulu - nokuba isimahla okanye ihlawuliswa. Ngesiqhelo, iisampulu ezingadingi xesha lininzi lomatshini zisimahla.

Umbuzo: Ithini imiqathango yakho yokuhlawula?

A: 30% T / T kwangaphambili, kunye nebhalansi ngaphambi kokuthunyelwa. Okanye njengoko kuxoxwe nomthengi.

Umbuzo: Ngaba siyayazi inkqubo yokuvelisa ngaphandle kokutyelela umzi-mveliso?

A: Ewe, siya kubonelela ngeshedyuli yemveliso eneenkcukacha kwaye sithumele iingxelo zeveki kunye nemifanekiso yedijithali kunye neevidiyo ezibonisa inkqubela yomatshini.

Umbuzo: Ngaba imizobo yoyilo olulungiselelweyo iyafumaneka?

A: Ewe, sinokuyamkela imizobo kwi-DWG, DXF, DXW, IGES, STEP, PDF, njl.

Umbuzo: Ngaba ungasayina i-NDA yoyilo olulungiselelweyo?

A: Ewe, sinokusayina i-NDA ngaphambi kokuba uthumele imizobo.

Njengomnye wabenzi beflange abaphambili kunye nababoneleli eTshayina, siyakwamkela ngezandla ezishushu ukuba uthenge-ibanga leflange eliphezulu elithengiswayo apha kumzi-mveliso wethu. Ngenkonzo eyenzelwe wena, qhagamshelana nathi ngoku.
